Description
Key Features…
– 10.36″ FHD+ Screen
– Android 13
– 8GB RAM
– 256GB Storage
– 48MP Rear Camera
– MIL-STD-810H
– IP68 & IP69
– 22000mAh Battery
– 33W Fast Charging
– Octa-core Processor
– Includes Free Stylus Pen
– Support NFC
TECHNICAL SPECIFICATIONS | |
Processor | MT6789, Octa-core, 2*A76@2.2GHz;6*A55@2.0 GHz |
GPU | ARM G57 MC2 Manhattan 3.0>36fps |
Operating system | Android 13 |
Dimensions / Weight | 256.3*165.8*16.8 mm/ |
Colours | Black, Orange |
SCREEN | |
Size | 10.36” inch |
Refresh rate | 90HZ |
Resolution | 1200*2000 5:3 |
LCD panel | INX/HD104IA-01A |
IC | FT8203-AA |
Panel type (IPS, other) | FHD+ IPS |
PPI/DPI | PPI:225 |
Brightness,1nit=1 cd/m² | 400min cd/M² |
Screen to Body Ratio (%) | 78.9% |
Viewing angle (H/V) | full angle |
TOUCH PANEL | |
Multi-touch, points supported | 10 points / 120HZ |
TP type (G+G, other) | INCELL |
IC | FT8203-AA |
glass | Corning gorilla glass 5 |
BATTERY | |
PMIC (Power management unit) | SGM41512YTQF24G/TR;HL7139WL01 |
Battery type & V/A | 3.87V ~4.45V |
Battery Size, LxWxH, mm | 160*93*7.9mm |
Polymer type | Polymer lithium ion battery |
Battery capacity, Wh | 85.14Wh |
Battery capacity, mAh | 22000mAh |
Battery working voltage range, V | 3.0V-4.45V |
Max charging current for the battery, mAh | 3A |
MEMORY | |
RAM type | UMCP |
RAM volume | 8GB |
ROM type | UMCP |
ROM volume | 256GB |
TF card slot | Support |
NETWORK & CONNECTIVITY | |
Wi-Fi | IEEE802.11 a/b/g/n/ac |
Bluetooth | 5.0 |
GSM | B2/B3/B5/B8 |
3G | B1/B2/B4/B5/B8, CDMA:BC0/BC1/BC10 |
LTE |
TDD:B34/B38/B39/B40/B41
FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B28A/B28B/B25/B26/B30/B66 TDD:B34/B38/B39/B40/B41
|
5G | Not support |
PHOTO | |
Front, Mpix | 16MP |
Front Camera Sensor | HI-1634Q |
Auto-focus (AF,FF) | FF |
Front Camera Aperture | 2.2±5% |
Front Camera Sensor Size | 1/3 inch |
Front Flash | NO |
Rear, Mpix | 48MP |
Rear Camera Sensor | samsung S5KGM2SP03-FGX9 |
Rear Camera Sensor Size | 1/2inch |
Auto-focus (AF,FF) | AF |
Rear Camera Aperture | 1.79±5% |
Rear Flash | YES |
Supported formats | jpeg\png\gif\bmp |
VIDEO | |
mp4、3gp、3gpp、avi、x-flv | |
LOCATION SERVICES | |
GPS | Yes |
Type | Glonass, Beidou, Galileo |
AUDIO | |
Speaker qty | 1338 2pcs; 1609 2pcs |
Speaker Ω/W | 1338 2w; 1609 2w |
Receiver size LxWxH, mm | NO |
Receiver Ω/W | NO |
Microphone type | Silicon microphone |
Supported formats | ogg 、aac、imy、amr、x-flac、mp3 |
FEATURES | |
Sensors (Proximity, Light, G-sensor etc) | YES |
Gyroscope | YES |
Magnetic | YES |
Air pressure sensor | NO |
Temperature humidity sensor | NO |
Hall | NO |
Compass | YES |
fingerprint | NO |
RGB | YES |
NFC | YES |
Coulomb Counter | NO |
Wireless charging | NO |
Hardware intercom | NO |
UV | NO |
heart rate | NO |
Sim-card quantity | Two |
Sim-card type | Two nano card/TF |
FM | YES |
OTG (+USB Host function) | YES |
Earphones 3,5mm jack type (OMTP or CTIA) | YES |
In the box | |

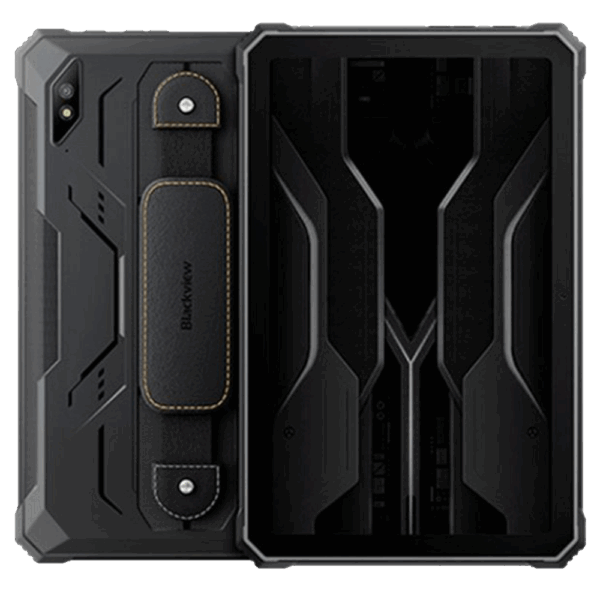

Blackview Active 8 Pro | |
Includes Stylus Pen | |
USB Cable | |
Power Adapter | |
User Manual |
